Current Position:Home > Product > GCCP MODEL LEATHER SPRAYING & DUSTING EQUIPMENT


GCCP

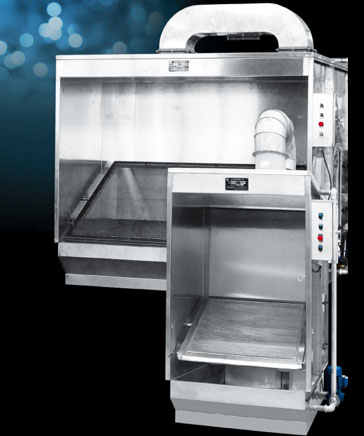

GCCP MODEL LEATHER SPRAYING & DUSTING EQUIPMENT
MAIN FUNCTION AND CHARACTERISTICS

This equipment is capable of doing spraying in tanning and leather chemical treatment enterprises as well as leather scientific & research institutes.Circulating water curtain is used to remove dust.Because of the arc-type water curtain plate,water curtain is created evenly,thus,making good dusting result.All harmful gas generated in spraying will be effectively dissolved into the water and no any dust contained in the discharged air.The stainless steel mesh plate,which is used for laying leather material,has a proper angle that could be adjusted at will.A link-age circuit is provided between the spraying gun and the water pump so that operation is very convenient.There is sufficient light to benefit observation.It is easy to clean the spraying cabinet as it is made of stainless steel.A pneumatic operated rotating plate with holes and one operation vehicle are provided for spraying a whole piece of oxhide.


TECHNICIAL PARAMETERS
Model & Size GCCP-
220×100
GCCP-
250×120
GCCP-
280×180
GCCP
350×300
Dimension of mesh plate mm 2200×1000 2500×1200 2800×1800 3500×3000
Height of the rotation axis mm 1000 1100 1200 1400
Fan power kw 5.5 11 11 11
Outline dimension(Height×length×width) mm 2400×1900×2100 3000×2100×2100 3000×1800×2200 3800×2200×3200
Total weight kg 800 1000 1200 1500
NOTE:
1. If an indoor air blower is installed,addition area for 2 square meter is needed.
2. The equipment in delivered with the exhaust pipe which is 6 meters in length and partially 1 meter higher than the spraying cabinet.
3. Special spraying cabinet can be designed for customer free of charge.
